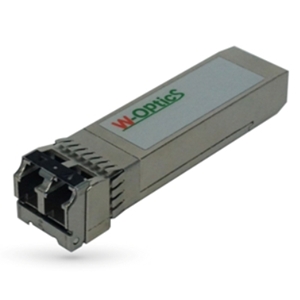

SPA-xFY1-211

Fiber Optic Transceiver by W-Optics Technology
74 more products from this company
Request Quote

Note: Your Quotation Request will be directed to W-Optics Technology.

The SPA-xFY1-211 from W-Optics Technology is a Fiber Optic Transceiver with Data Rate 10 Gb/s, Wavelength 850 nm, Distance/Reach 300 m, Output Power -1 to 6.5 dBm, Receiver Sensitivity -11.1 dBm. More details for SPA-xFY1-211 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    SPA-xFY1-211
  • Manufacturer
    W-Optics Technology
  • Description
    850 nm Trasceiver with -1 to 6.5 dBm Power

Connections & Interface

  • Interface
    SDH(STM64)/SONET(OC-192), 10G BASE-SR/SW, Ethernet

General Parameters

  • Data Rate
    10 Gb/s
  • Wavelength
    850 nm
  • Distance/Reach
    300 m
  • Output Power
    -1 to 6.5 dBm
  • Fiber Modes
    Single Mode, Multi Mode
  • Form Factor
    SFP+
  • Receiver Sensitivity
    -11.1 dBm
  • RoHs
    Yes

Temperature

  • Operating Temperature
    0 to 70 Degree C (CT), -40 to 85 Degree C (IT)
