SPZ-3FF1-211

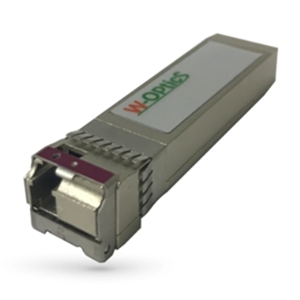

Fiber Optic Transceiver by W-Optics Technology
74 more products from this company
Request Quote

Note: Your Quotation Request will be directed to W-Optics Technology.

The SPZ-3FF1-211 from W-Optics Technology is a Fiber Optic Transceiver with Data Rate 10 Gb/s, Wavelength 1270 nm, 1330 nm, Distance/Reach 10 km, Output Power -6.5 to 0.5 dBm, Receiver Sensitivity -12 dBm. More details for SPZ-3FF1-211 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    SPZ-3FF1-211
  • Manufacturer
    W-Optics Technology
  • Description
    1270 nm, 1330 nm Trasceiver with -6.5 to 0.5 dBm Power

Connections & Interface

  • Connector
    Simplex LC
  • Interface
    I2C, LVTTL, 2-wire serial

General Parameters

  • Data Rate
    10 Gb/s
  • Wavelength
    1270 nm, 1330 nm
  • Distance/Reach
    10 km
  • Output Power
    -6.5 to 0.5 dBm
  • Fiber Modes
    Single Mode
  • Form Factor
    SFP+
  • Receiver Sensitivity
    -12 dBm
  • Supply Voltage
    3.3 V
  • RoHs
    Yes

Temperature

  • Operating Temperature
    0 to 70 Degree C (CT), -40 to 85 Degree C (IT)
