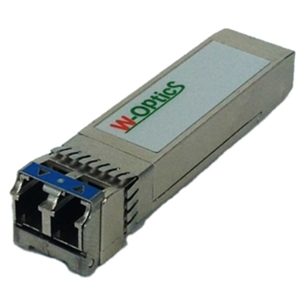

SSA-xAC1-x11

Fiber Optic Transceiver by W-Optics Technology
74 more products from this company
Request Quote

Note: Your Quotation Request will be directed to W-Optics Technology.

The SSA-xAC1-x11 from W-Optics Technology is a Fiber Optic Transceiver with Data Rate 1.25 Gb/s, Wavelength 850 nm, Distance/Reach 550 m, Output Power -9 to -3 dBm, Receiver Sensitivity -18 dBm. More details for SSA-xAC1-x11 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    SSA-xAC1-x11
  • Manufacturer
    W-Optics Technology
  • Description
    850 nm Trasceiver with -9 to -3 dBm Power

Connections & Interface

  • Connector
    Duplex LC
  • Interface
    I2C, LVTTL, 2-wire serial

General Parameters

  • Data Rate
    1.25 Gb/s
  • Wavelength
    850 nm
  • Distance/Reach
    550 m
  • Output Power
    -9 to -3 dBm
  • Fiber Modes
    Single Mode, Multi Mode
  • Form Factor
    SFP
  • Receiver Sensitivity
    -18 dBm
  • Supply Voltage
    3.3 V
  • RoHs
    Yes

Temperature

  • Operating Temperature
    0 to 70 Degree C (CT), -40 to 85 Degree C (IT)
