Y-16001I000

Fiber Optic Transceiver by YOFC
109 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to YOFC.

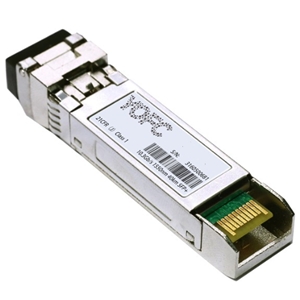

The Y-16001I000 from YOFC is a Fiber Optic Transceiver with Data Rate 10 Gb/s, Wavelength 850 nm, Distance/Reach 300 m, Output Power -10 to 0.5 dBm. More details for Y-16001I000 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Y-16001I000
  • Manufacturer
    YOFC
  • Description
    850 nm Optical Transceiver with -10 to 0.5 dBm Power

Applications

  • Applications
    10G Ethernet, Metro, Access, Wireless, SDH/SONET, Data Center and other optical links

Connections & Interface

  • Connector
    LC
  • Interface
    SDH/SONET, Ethernet

General Parameters

  • Data Rate
    10 Gb/s
  • Wavelength
    850 nm
  • Distance/Reach
    300 m
  • Output Power
    -10 to 0.5 dBm
  • Fiber Modes
    Single Mode
  • Form Factor
    SFP+
  • Supply Voltage
    3.3 V
  • RoHs
    Yes

Temperature

  • Operating Temperature
    0 to 70 Degree C, -40 to 85 Degree C

Physical Properties

  • Fiber Core Diameter
    9 µm
