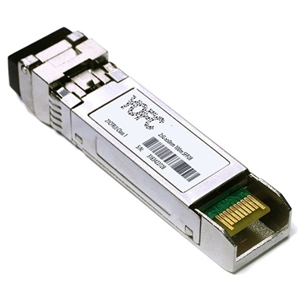

Y-27XX4I000

Fiber Optic Transceiver by YOFC
109 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to YOFC.

The Y-27XX4I000 from YOFC is a Fiber Optic Transceiver with Data Rate 25 Gb/s, Wavelength 1267 nm to 1375 nm, Distance/Reach 10 km, Output Power -13 to 2 dBm. More details for Y-27XX4I000 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Y-27XX4I000
  • Manufacturer
    YOFC
  • Description
    1267 nm to 1375 nm Optical Transceiver with -13 to 2 dBm Power

Applications

  • Applications
    25G Ethernet, Metro, Wireless, SDH/SONET, Data Center and other optical links

Connections & Interface

  • Connector
    LC
  • Interface
    SDH/SONET, Ethernet

General Parameters

  • Data Rate
    25 Gb/s
  • Wavelength
    1267 nm to 1375 nm
  • Distance/Reach
    10 km
  • Output Power
    -13 to 2 dBm
  • Form Factor
    SFP28
  • Supply Voltage
    3.3 V
  • RoHs
    Yes

Temperature

  • Operating Temperature
    0 to 70 Degree C, -40 to 85 Degree C
