L25 Lasers Family

Laser by Access Laser
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Access Laser.

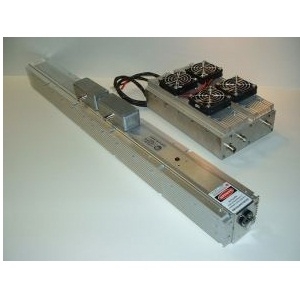

The L25 Lasers Family from Access Laser is a Laser with Wavelength 10.6 µm, Power 25 W, Output Power (CW) 25 W, Operating Temperature 5 to 40 Degree C. More details for L25 Lasers Family can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    L25 Lasers Family
  • Manufacturer
    Access Laser

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate)
  • Application Industry
    Automotive / Industrial & Manufacturing
  • Operation Mode
    CW Laser
  • Wavelength
    10.6 µm
  • Power
    25 W
  • Output Power (CW)
    25 W
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Infrared
  • Rise/Fall Time :
    200 µs
  • Gain Medium Type
    Gas Laser
  • Power Consumption
    500 W
  • Power Stability
    ±5%
  • Peak Power
    25 W
  • Voltage
    28 VDC
  • Note
    Full Divergance Angle: 5.5 mrad

Physical Properties

  • Power Supply Dimension
    711.2 x 71.12 x 96.52 mm (28 x 2.8 x 3.8 inch)
  • Beam Diameter
    2.4 mm

Environmental Conditions

  • Operating Temperature
    5 to 40 Degree C
