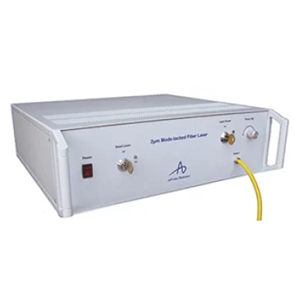

AP-ML1

Note: Your Quotation Request will be directed to AdValue Photonics.

The AP-ML1 from AdValue Photonics is a Laser with Power 1 W, Wavelength 1.95 µm, Pulse Width 3 ps, Repetition Rate 20 to 40 MHz, Operating Temperature 18 to 30 Degree C. More details for AP-ML1 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    AP-ML1
  • Manufacturer
    AdValue Photonics
  • Description
    2 Micron Mode-Locked Fiber Laser

General Parameters

  • Configuration
    Laser Head with Control Unit (Integrated)
  • Type
    Laser System
  • Technology
    Mode-Locked Laser
  • Operation Mode
    Pulsed Laser
  • Application
    Spectroscopy, Optical Fiber Communication
  • Power
    1 W
  • Wavelength
    1.95 µm
  • Ultrafast Laser
    Picosecond Lasers
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Infrared
  • Pulse Width
    3 ps
  • Polarization Orientation
    Random
  • Gain Medium Type
    Solid State Laser
  • Warm up time
    10 minutes
  • Application Industry
    Scientific Research, Communications
  • Repetition Rate
    20 to 40 MHz
  • Modulation Frequency
    50/60 Hz
  • Wavelength Accuracy
    ±0.05 µm
  • Package
    Rack-Mount
  • Power Supply
    AC 100 to 240 V (50/60Hz)

Physical Properties

  • Dimension
    448.6 x 433 x 132.5 mm(W x D x H)

Environmental Conditions

  • Cooling Method
    Air Cooled
  • Operating Temperature
    18 to 30 Degree C
  • Storage Temperature
    -10 to 70 Degree C
