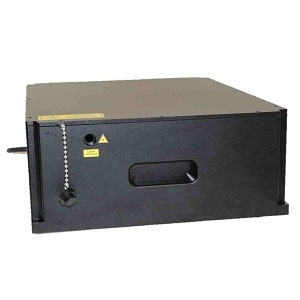

AP-P-SF-1550

Note: Your Quotation Request will be directed to AdValue Photonics.

The AP-P-SF-1550 from AdValue Photonics is a Laser with Wavelength 1.55 µm, Power Up to 10 W, Pulse Energy Up to 1 mJ, Operating Temperature 10 to 35 Degree C, Storage Temperature -10 to 70 Degree C. More details for AP-P-SF-1550 can be seen below.

Product Specifications View similar products

Product Details

  • Part Number
    AP-P-SF-1550
  • Manufacturer
    AdValue Photonics
  • Description
    Pulsed Single Frequency (AP-P-SF-1550)

General Parameters

  • Configuration
    Laser Head with Control Unit (Integrated)
  • Type
    Laser System
  • Technology
    Solid State Laser
  • Operation Mode
    Pulsed Laser
  • Ultrafast Laser
    Nanosecond Lasers
  • Wavelength
    1.55 µm
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Mode
    Single Mode
  • Laser Color
    Infrared
  • Power
    Up to 10 W
  • Pulse Energy
    Up to 1 mJ
  • Pulse Width
    2 to 300 ns
  • Application
    LIDAR, Frequency conversion, Mid-IR generation, Spectroscopy
  • Polarization Orientation
    Linear
  • Repetition Rate
    1 kHz to 10 kH
  • Warm up time
    10 minutes
  • Application Industry
    LIDAR & Sensing, Optical Communications, Scientific
  • Beam Quality Factor (M2)
    1.2
  • Modulation Frequency
    50/60 Hz
  • Pulse Energy
    Up to 1 mJ
  • Package
    Benchtop
  • Power Supply
    AC 100 to 240 V (50/60Hz)

Physical Properties

  • Dimension
    450 x 400 x 145 mm(W x D x H)

Environmental Conditions

  • Cooling Method
    Water Cooled
  • Operating Temperature
    10 to 35 Degree C
  • Storage Temperature
    -10 to 70 Degree C
