AOPico Montauk 532

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Advanced Optowave Corporation.

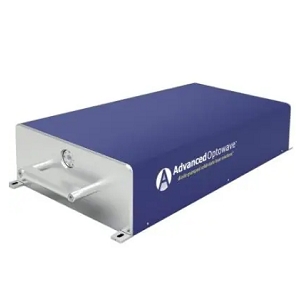

The AOPico Montauk 532 from Advanced Optowave Corporation is a Laser with Wavelength 532 nm, Power 30 to 80 W, Pulse Energy >30 to 200 µJ, Pulse Width <12 ps, Repetition Rate 100 to 2500 kHz. More details for AOPico Montauk 532 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    AOPico Montauk 532
  • Manufacturer
    Advanced Optowave Corporation
  • Description
    30 to 80 W Industrial Green picosecond laser

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Picosecond Lasers
  • Application Industry
    Automotive / Industrial & Manufacturing
  • Application
    PI cutting, FPC cutting, Solar cell scribing
  • Operation Mode
    Pulsed Laser
  • Wavelength
    532 nm
  • Power
    30 to 80 W
  • Pulse Energy :
    >30 to 200 µJ
  • Pulse Energy
    >30 to 200 µJ
  • Pulse Width
    <12 ps
  • Repetition Rate
    100 to 2500 kHz
  • Pulse to Pulse Stability
    <2% RMS
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Green
  • Polarization
    Vertical
  • Polarization Orientation
    Linear
  • Polarization ratio :
    100:1
  • Beam Divergence :
    <3 mrad
  • Beam Quality Factor (M2) :
    <1.1
  • Beam Shape
    Round
  • Warm up time
    <40 min (Cold Start), <10 min (Standby)
  • Power Stability
    <3% (over 12 hours)
  • Peak Power
    1000 W (Rated Power)
  • Pointing Stability :
    <20 µrad/Degree C
  • Interface
    RS-232
  • Voltage
    24 VDC

Physical Properties

  • Beam Diameter
    <3 mm

Environmental Conditions

  • Cooling Method
    Water-Cooled
  • Relative Humidity
    20 to 80%
  • Operating Temperature
    15 to 35 Degree C
  • Storage Temperature
    -20 to 50 Degree C

Technical Documents
Click to view more product details on manufacturer's website
