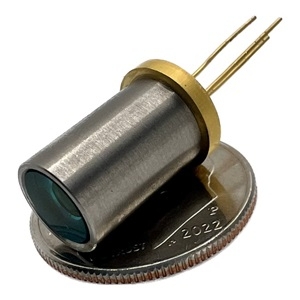

MiniGreen A100

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Advanced Photonic Sciences.

The MiniGreen A100 from Advanced Photonic Sciences is a Laser with Wavelength 532 nm, Power >100 mW, Operating Temperature 10 to 50 Degree C, Storage Temperature -40 to 80 Degree C. More details for MiniGreen A100 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    MiniGreen A100
  • Manufacturer
    Advanced Photonic Sciences
  • Description
    532 nm DPSS Laser with >100 mW Power

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head
  • Operation Mode
    CW Laser
  • Wavelength
    532 nm
  • Power
    >100 mW
  • Technology
    DPSS Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Green
  • Polarization ratio :
    4:1
  • Beam Divergence :
    11 mrad
  • Beam Quality Factor (M2) :
    1.6
  • Current
    <1.4 A
  • Laser Class
    CLASS IIIB
  • Warm up time
    <2 minutes
  • Power Consumption
    <3.1 W
  • RMS Noise Power
    <2% RMS
  • Voltage
    >2.2 V

Physical Properties

  • Package
    TO9
  • Beam Diameter
    110 mm

Environmental Conditions

  • Operating Temperature
    10 to 50 Degree C
  • Storage Temperature
    -40 to 80 Degree C
