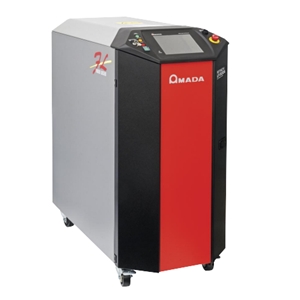

LF-700A

Laser by AMADA WELD TECH
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to AMADA WELD TECH.

The LF-700A from AMADA WELD TECH is a Laser with Wavelength 1070 nm, Power 700 W, Operating Temperature 5 to 40 Degree C. More details for LF-700A can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    LF-700A
  • Manufacturer
    AMADA WELD TECH
  • Description
    1070 nm Ytterbium-Doped Fiber Laser with 700 W Power

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Automotive / Industrial & Manufacturing
  • Application
    Laser Welding (Medical spring attachment, Medical component assembly, Battery tab welding), Fine Precision Cutting of Metals
  • Operation Mode
    CW Laser, Pulsed Laser
  • Wavelength
    1070 nm
  • Wavelength Accuracy
    ±5 nm
  • Power
    700 W
  • Technology
    Solid State Laser
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Mode
    Single Mode, Multi Mode
  • Laser Color
    Infrared
  • Gain Medium Type
    Solid State Laser
  • Laser Cavity Material
    Yb:Fiber
  • Laser Gain Medium
    Ytterbium-Doped Fiber Laser
  • Current
    40 A
  • Laser Class
    Class 4
  • Interface
    Digital IO, RS-485
  • Power Supply
    200 to 240 V ±10% single phase
  • Certifications
    CE, CDRH

Physical Properties

  • Dimension
    511 x 933 x 1051 mm (W x D x H)
  • Weight
    159 kg
  • Fiber diameter
    50 µm (Core)
  • Fiber length
    5 m

Environmental Conditions

  • Cooling Method
    Air Cooled, Water Cooled
  • Relative Humidity
    10 to 85%
  • Operating Temperature
    5 to 40 Degree C
