Vlite 200

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Beamtech Optronics.

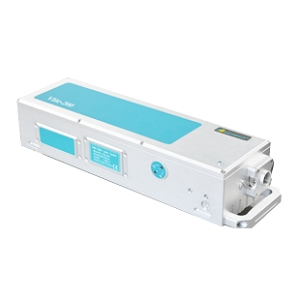

The Vlite 200 from Beamtech Optronics is a Laser with Wavelength 532 nm, Pulse Energy 200 mJ, Pulse Width 6 to 8 ns, Repetition Rate 0 to 15 Hz, Operating Temperature 10 to 30 Degree C. More details for Vlite 200 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Vlite 200
  • Manufacturer
    Beamtech Optronics
  • Description
    Vlite series lasers are dual pulse Q-switched nanosecond laser systems

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate)
  • Ultrafast Laser
    Nanosecond Lasers
  • Application Industry
    Scientific / Research, Environmental, Entertainment
  • Application
    Imaging, Particle Analysis, Laser Projectors, Particle Counting
  • Operation Mode
    Pulsed Laser
  • Wavelength
    532 nm
  • Pulse Energy :
    200 mJ
  • Pulse Energy
    200 mJ
  • Pulse Width
    6 to 8 ns
  • Repetition Rate
    0 to 15 Hz
  • Technology
    Q-Switched Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Green
  • Beam Divergence :
    3 mrad
  • Current
    10 A
  • Modulation Frequency
    50 to 60 Hz
  • Pointing Stability :
    50 µrad
  • Voltage
    220 V-50/60 Hz-10 A

Physical Properties

  • Laser Head Dimension
    428 x 130 x 91 mm
  • Power Supply Dimension
    476 x 265 x 465 mm
  • Beam Diameter
    7 mm
  • Fiber length
    Cable Length: 3 m

Environmental Conditions

  • Cooling Method
    Water-Cooled
  • Operating Temperature
    10 to 30 Degree C
  • Storage Temperature
    5 to 50 Degree C
