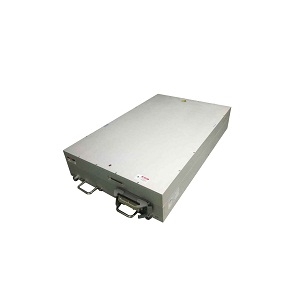

Amber IR-50

Laser by Bellin Laser
Request Quote

Note: Your Quotation Request will be directed to Bellin Laser.

The Amber IR-50 from Bellin Laser is a Laser with Wavelength 1064 nm, Power 50 W, Output Power (Pulsed) 50 W, Pulse Energy 180 uJ, Pulse Width 15 ps. More details for Amber IR-50 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Amber IR-50
  • Manufacturer
    Bellin Laser
  • Description
    10~50W Picosecond IR Laser (Amber IR)

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Picosecond Lasers
  • Application Industry
    Automotive / Industrial & Manufacturing, Medical
  • Application
    Cutting, Drilling, Oncology, Laser Surgery, Medical Imaging
  • Operation Mode
    Pulsed Laser
  • Wavelength
    1064 nm
  • Power
    50 W
  • Output Power (Pulsed)
    50 W
  • Pulse Energy :
    180 uJ
  • Pulse Energy
    180 uJ
  • Pulse Width
    15 ps
  • Repetition Rate
    1 Hz to 100 kHz
  • Pulse to Pulse Stability
    3% RMS
  • Technology
    DPSS Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    infrared
  • Polarization
    Vertical
  • Transverse Mode
    TEM00
  • Beam Divergence :
    2 mrad
  • Warm up time
    10 Min.
  • Power Stability
    3% RMS
  • Interface
    Ethernet, Gate
  • Voltage
    90 to 260 V

Physical Properties

  • Package
    Benchtop
  • Beam Diameter
    1.4 mm

Environmental Conditions

  • Cooling Method
    Water Cooled
  • Relative Humidity
    10 to 80%
