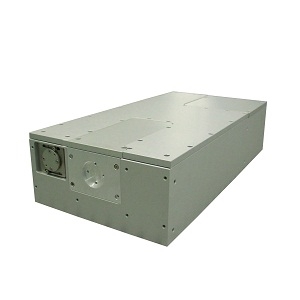

Opal UV-10

Laser by Bellin Laser
Request Quote

Note: Your Quotation Request will be directed to Bellin Laser.

The Opal UV-10 from Bellin Laser is a Laser with Wavelength 355 nm, Power 10 W, Output Power (Pulsed) 10 W, Pulse Energy 333 uJ, Pulse Width 20 ns. More details for Opal UV-10 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Opal UV-10
  • Manufacturer
    Bellin Laser
  • Description
    10~15W UV Laser (Opal UV)

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Nanosecond Lasers
  • Application Industry
    Automotive / Industrial & Manufacturing
  • Application
    Marking, Cutting, Scribing, Drilling, Etching
  • Operation Mode
    Pulsed Laser
  • Wavelength
    355 nm
  • Power
    10 W
  • Output Power (Pulsed)
    10 W
  • Pulse Energy :
    333 uJ
  • Pulse Energy
    333 uJ
  • Pulse Width
    20 ns
  • Repetition Rate
    10 to 100 KHz
  • Pulse to Pulse Stability
    3% RMS
  • Technology
    DPSS Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Ultraviolet
  • Polarization
    Horizontal
  • Transverse Mode
    TEM00
  • Beam Divergence :
    2 mrad
  • Warm up time
    10 Min.
  • Power Stability
    3% RMS
  • Interface
    RS232, Gate/PWM
  • Voltage
    90 to 260 V

Physical Properties

  • Package
    Benchtop
  • Beam Diameter
    1 mm

Environmental Conditions

  • Cooling Method
    Water Cooled
  • Relative Humidity
    10 to 80%
