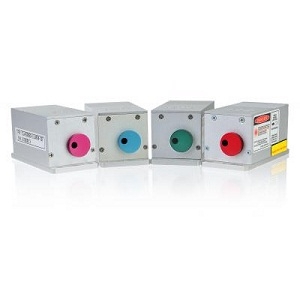

CLASII 375-18c

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Blue Sky Research.

The CLASII 375-18c from Blue Sky Research is a Laser with Wavelength 375 nm, Power 18 mW, Output Power (CW) 18 mW, Operating Temperature 10 to 40 Degree C. More details for CLASII 375-18c can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    CLASII 375-18c
  • Manufacturer
    Blue Sky Research
  • Description
    CHROMALASE II Diode Laser Modules

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Integrated), OEM Laser Module
  • Application Industry
    Medical, Scientific / Research, Defense / Military & Aerospace
  • Application
    Bio-Medical, Flow Cytometry, Microscopy, Ophthalmology, LiDAR, Laser Rangefinders
  • Operation Mode
    CW Laser
  • Wavelength
    375 nm
  • Wavelength Accuracy
    ± 5 nm
  • Power
    18 mW
  • Output Power (CW)
    18 mW
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Ultraviolet
  • Polarization
    Vertical
  • Beam Divergence :
    1 mrad
  • Beam Shape
    Circular
  • Power Stability
    0.5% to 2.0%
  • RMS Noise Power
    0.5% rms
  • Voltage
    DC to 12 V
  • RoHS
    Yes

Physical Properties

  • Beam Area
    Beam Size: 1x3 mm
  • Beam Diameter
    0.8 mm

Environmental Conditions

  • Relative Humidity
    70 % (Non-Condensing)
  • Operating Temperature
    10 to 40 Degree C
