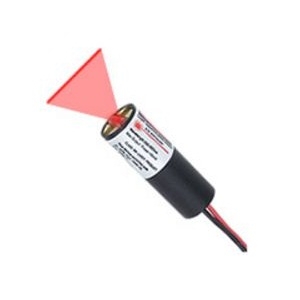

CP-TIM-230-9-1L-635

Laser by Calpac Lasers
Request Quote

Note: Your Quotation Request will be directed to Calpac Lasers.

The CP-TIM-230-9-1L-635 from Calpac Lasers is a Laser with Wavelength 635 nm, Power 1 mW, Output Power (CW) 1 mW, Operating Temperature -10 to 30 Degree C, Storage Temperature -40 to 50 Degree C. More details for CP-TIM-230-9-1L-635 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    CP-TIM-230-9-1L-635
  • Manufacturer
    Calpac Lasers
  • Description
    Fine/Precise Red Line Laser Diode Module Class II: 1mW/ 635nm

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head, OEM Laser Module
  • Application Industry
    Scientific / Research, Automotive / Industrial & Manufacturing
  • Application
    Alignment, Test & Measurement, Welding, Cutting, Drilling, Marking, Engraving, Cleaning, Trimming
  • Operation Mode
    CW Laser
  • Wavelength
    635 nm
  • Power
    1 mW
  • Output Power (CW)
    1 mW
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Red
  • Beam Shape
    Line
  • Current
    30 to 50 mA
  • Laser Class
    Class II
  • Voltage
    3 VDC
  • Note
    Wire Length: 250 mm

Physical Properties

  • Dimension
    30 x 10.5 mm

Environmental Conditions

  • Operating Temperature
    -10 to 30 Degree C
  • Storage Temperature
    -40 to 50 Degree C
