IK-016-QTG

Request Quote

Note: Your Quotation Request will be directed to Cutting Edge Optronics.

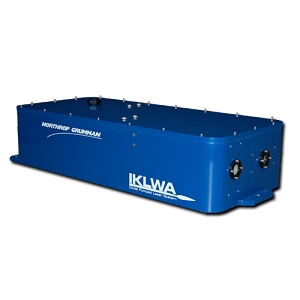

The IK-016-QTG from Cutting Edge Optronics is a Laser with Wavelength 532 nm, Power 16 W, Output Power (Pulsed) 16 W, Pulse Energy 1.8 mJ, Pulse Width 80 ns. More details for IK-016-QTG can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    IK-016-QTG
  • Manufacturer
    Cutting Edge Optronics
  • Description
    The TEMoo IKLWA features Q-Switched rated output power up to 16 Watts at 532nm

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Nanosecond Lasers
  • Application Industry
    Automotive / Industrial & Manufacturing
  • Application
    Machine Vision
  • Operation Mode
    Pulsed Laser
  • Wavelength
    532 nm
  • Power
    16 W
  • Output Power (Pulsed)
    16 W
  • Pulse Energy :
    1.8 mJ
  • Pulse Energy
    1.8 mJ
  • Pulse Width
    80 ns
  • Repetition Rate
    9 kHz
  • Pulse to Pulse Stability
    1.5 % rms
  • Technology
    DPSS Laser, Solid State Laser, Q-Switched Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Green
  • Polarization
    Horizontal
  • Transverse Mode
    TEM00
  • Beam Divergence :
    1.7 mrad
  • Gain Medium Type
    Solid State Laser
  • Laser Cavity Material
    Nd:YAG
  • Laser Gain Medium
    Neodymium-Doped Lasers

Physical Properties

  • Beam Diameter
    0.9 mm

Environmental Conditions

  • Cooling Method
    Water-Cooled
  • Operating Temperature
    18 to 30 Degree C
