Sagittar-H 532 nm

Request Quote

Note: Your Quotation Request will be directed to Daheng New Epoch Techology.

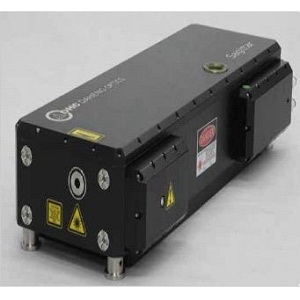

The Sagittar-H 532 nm from Daheng New Epoch Techology is a Laser with Wavelength 532 nm, Power 12 W, Output Power (Pulsed) 12 W, Pulse Energy Up to 60 uJ, Pulse Width 10 ps. More details for Sagittar-H 532 nm can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Sagittar-H 532 nm
  • Manufacturer
    Daheng New Epoch Techology

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Picosecond Lasers
  • Application Industry
    Automotive / Industrial & Manufacturing
  • Application
    Material processing, Cutting
  • Operation Mode
    Pulsed Laser
  • Wavelength
    532 nm
  • Power
    12 W
  • Output Power (Pulsed)
    12 W
  • Pulse Energy :
    Up to 60 uJ
  • Pulse Energy
    Up to 60 uJ
  • Pulse Width
    10 ps
  • Repetition Rate
    1 MHz
  • Pulse to Pulse Stability
    2% rms
  • Technology
    Solid State Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Green
  • Transverse Mode
    TEM00
  • Beam Divergence :
    1 mrad
  • Power Stability
    1.5% rms
  • Pointing Stability :
    50 µrad/Degree C

Physical Properties

  • Beam Diameter
    1.5 mm

Environmental Conditions

  • Operating Temperature
    15 to 35 Degree C
