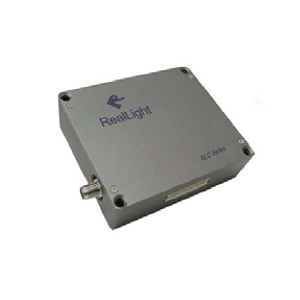

NLO-830-IMF

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Electro Optical Components.

The NLO-830-IMF from Electro Optical Components is a Laser with Wavelength 830 nm, Power 500 mW, Output Power (CW) 500 mW, Operating Temperature 10 to 45 Degree C, Storage Temperature 0 to 55 Degree C. More details for NLO-830-IMF can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    NLO-830-IMF
  • Manufacturer
    Electro Optical Components
  • Description
    Narrow Linewidth Laser Module

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Scientific / Research, Environmental
  • Application
    Microscopy, Fluorescence, Particle Analysis, Spectroscopy, Imaging, Solar cell
  • Operation Mode
    CW Laser
  • Wavelength
    830 nm
  • Wavelength Accuracy
    +/-0.5 nm
  • Spectral Width :
    0.1 nm
  • Power
    500 mW
  • Output Power (CW)
    500 mW
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Infrared
  • Connectors
    SMA-905, FC/PC
  • Power Consumption
    5 W
  • Interface
    10-Pin, 2.54 mm
  • Voltage
    4.9 to 5.1 V@2 A
  • Note
    SMSR: 40 dB

Physical Properties

  • Dimension
    76.2 x 63.5 x 18 mm
  • Weight
    130 Kg
  • Fiber diameter
    105 um

Environmental Conditions

  • Operating Temperature
    10 to 45 Degree C
  • Storage Temperature
    0 to 55 Degree C

Technical Documents
Click to view more product details on manufacturer's website
