UKKO–PS–1064–50–10–60

Laser by Evolase
Download Datasheet Request Quote

Note: Your Quotation Request will be directed to Evolase.

The UKKO–PS–1064–50–10–60 from Evolase is a Laser with Power >10 W, Wavelength 1064 nm, Pulse Width 50 ps, Pulse Energy Up to 60 µJ, Repetition Rate 50 kHz to 20 MHz. More details for UKKO–PS–1064–50–10–60 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    UKKO–PS–1064–50–10–60
  • Manufacturer
    Evolase
  • Description

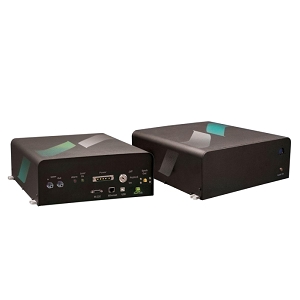

    1064 nm Infrared Pulsed Fiber Laser System

General Parameters

  • Configuration
    Laser Head with Control Unit (Integrated)
  • Type
    Laser System
  • Operation Mode
    Pulsed Laser
  • Application
    High Precision Laser Cleaning of Glass, Cutting of Carbon Fiber Reinforced Plastic, Glass Cutting and Modification, Laser Ablation of High Temperature Materials, Selective Laser Sintering of Polymer Powder
  • Power
    >10 W
  • Wavelength
    1064 nm
  • Ultrafast Laser
    Picosecond Lasers
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Infrared
  • Pulse Width
    50 ps
  • Pulse Energy :
    Up to 60 µJ
  • Polarization ratio :
    >15 dB
  • Application Industry
    Scientific / Research, Automotive / Industrial & Manufacturing
  • Repetition Rate
    50 kHz to 20 MHz
  • Beam Divergence :
    <3 mrad
  • Beam Quality Factor (M2) :
    <1.3
  • Laser Class
    Class IV
  • Power Consumption
    170 W
  • Power Stability
    <1%
  • Pointing Stability :
    <70 µrad
  • Wavelength Accuracy
    ±1 nm
  • Pulse Energy
    Up to 60 µJ
  • Package
    Benchtop
  • Interface
    RS232, LAN, USB
  • Voltage
    24 V

Physical Properties

  • Dimension
    345 x 330 x 121 mm (W x H x L)
  • Beam Diameter
    0.8 to 1.2 mm

Environmental Conditions

  • Cooling Method
    Air Cooled
  • Relative Humidity
    10 to 80%
  • Operating Temperature
    18 to 27 Degree C
