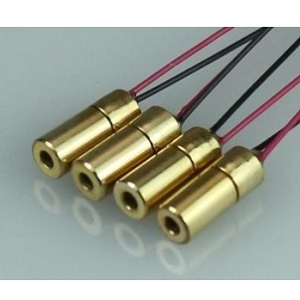

FAL-450-X.X-GS

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Frankfurt Laser Company.

The FAL-450-X.X-GS from Frankfurt Laser Company is a Laser with Power <0.4 to 5 mW, Wavelength 450 nm, Output Power (Pulsed) <0.4 to 5 mW. More details for FAL-450-X.X-GS can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    FAL-450-X.X-GS
  • Manufacturer
    Frankfurt Laser Company
  • Description
    <0.4 to 5 mW 450 nm Violet CW, Pulsed Laser

General Parameters

  • Configuration
    Laser Head
  • Type
    Laser Module
  • Operation Mode
    CW Laser, Pulsed Laser
  • Application
    Gun Laser Sights, Laser Barcode Scanners, Miniature Laser Tools, Laser Positioning, Laser Alignment, Laser Aiming Devices, Laser Scanning
  • Power
    <0.4 to 5 mW
  • Wavelength
    450 nm
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Violet
  • Output Power (Pulsed)
    <0.4 to 5 mW
  • Application Industry
    Scientific / Research, Automotive / Industrial & Manufacturing, Defense / Military & Aerospace, Entertainment
  • Beam Divergence :
    0.6 to 3 mrad
  • Current
    120 mA
  • Package
    Pigtailed Module
  • Voltage
    3 to 5 V

Physical Properties

  • Beam Area
    <6 x 12 mm @ 10 m, <10 x 20 mm @ 20 m
