LE670-2.5-3

Laser by Huanic
Request Quote

Note: Your Quotation Request will be directed to Huanic.

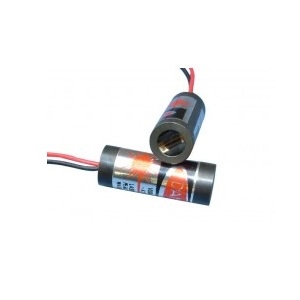

The LE670-2.5-3 from Huanic is a Laser with Wavelength 670 nm, Power 2.5 mW, Output Power (CW) 2.5 mW, Operating Temperature -10 to 40 Degree C, Storage Temperature -40 to 80 Degree C. More details for LE670-2.5-3 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    LE670-2.5-3
  • Manufacturer
    Huanic
  • Description
    Red line laser module for more than 10 meters distance

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head
  • Application Industry
    Automotive / Industrial & Manufacturing, Defense / Military & Aerospace, Entertainment, Environmental
  • Application
    Cutting, Marking, LiDAR, 3D Printing, Surface Treatment, Laser Projectors, Laser Surveying, Cleaning, Contaminant Detection, Machine Vision
  • Operation Mode
    CW Laser
  • Wavelength
    670 nm
  • Power
    2.5 mW
  • Output Power (CW)
    2.5 mW
  • Technology
    DPSS Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Red
  • Beam Divergence :
    0.6 mrad
  • Beam Shape
    Line
  • Current
    60 mA
  • Laser Class
    Class II
  • Voltage
    DC to 3 V
  • Note
    Line Thickness: 1.5 to 3 mm, Fan Angle: 10 to 110 Degree, Optics: Glass Lens Both Sides AR Coated, Life Time: 8000 hours

Physical Properties

  • Dimension
    12 x 32 mm

Environmental Conditions

  • Operating Temperature
    -10 to 40 Degree C
  • Storage Temperature
    -40 to 80 Degree C
