Spruce-355-5

Request Quote

Note: Your Quotation Request will be directed to Huaray Precision Laser.

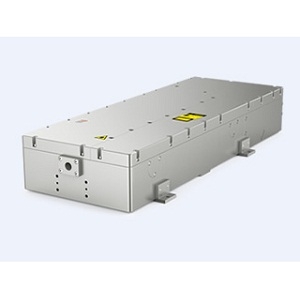

The Spruce-355-5 from Huaray Precision Laser is a Laser with Wavelength 355 nm, Power 5 W, Output Power (Pulsed) 5 W, Pulse Energy 125 µJ, Pulse Width 20 ns. More details for Spruce-355-5 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Spruce-355-5
  • Manufacturer
    Huaray Precision Laser
  • Description
    Low-Power Nanosecond UV DPSS Lasers

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Nanosecond Lasers
  • Application Industry
    Automotive / Industrial & Manufacturing
  • Application
    Marking, Material processing, Annealing, Cleaning, Scribing
  • Operation Mode
    Pulsed Laser
  • Wavelength
    355 nm
  • Power
    5 W
  • Output Power (Pulsed)
    5 W
  • Pulse Energy :
    125 µJ
  • Pulse Energy
    125 µJ
  • Pulse Width
    20 ns
  • Repetition Rate
    20 to 200 kHz
  • Pulse to Pulse Stability
    <3%rms
  • Technology
    DPSS Laser, Solid state Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Ultraviolet
  • Polarization
    Horizontal
  • Transverse Mode
    TEM00
  • Beam Divergence :
    <2 mrad
  • Gain Medium Type
    Solid State Laser
  • Laser Cavity Material
    Nd:YVO4
  • Laser Gain Medium
    Vanadate Laser
  • Laser Class
    Class IV
  • Power Consumption
    600 W
  • Power Stability
    Long term stability: <3%rms
  • Pointing Stability :
    <25 µrad
  • Interface
    RS-232

Physical Properties

  • Beam Diameter
    <10 mm
