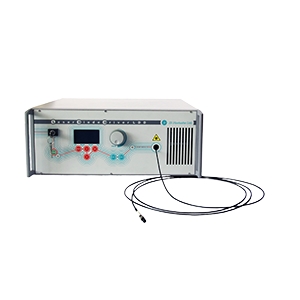

LDS-QCW

Laser by IB Photonics
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to IB Photonics.

The LDS-QCW from IB Photonics is a Laser with Pulse Width 10 us to 65 mS, Operating Temperature 15 to 35 Degree C. More details for LDS-QCW can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    LDS-QCW
  • Manufacturer
    IB Photonics
  • Description
    LDS Series Laser Diode Systems

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Scientific / Research, Medical, Entertainment
  • Application
    Pumping Source, Laser Surgery, Dermatology, Laser Light Shows, Test & Measurement, Life Science
  • Operation Mode
    CW/Pulsed Laser
  • Wavelength Accuracy
    +/-3 nm
  • Bandwidth
    5 nm
  • Pulse Width
    10 us to 65 mS
  • Technology
    Solid State Laser
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Near-Infrared
  • Rise/Fall Time :
    50 ns to 2.5 us
  • Slope Efficiency :
    0.7 to 1.4 W/A
  • Power Supply
    110 to 220 V/50-60 Hz

Physical Properties

  • Package
    Rach-Mount
  • Dimension
    470 x 320 x 160 mm3
  • Fiber diameter
    SMA 905
  • Fiber length
    3 m

Environmental Conditions

  • Cooling Method
    Water Cooled
  • Relative Humidity
    20 to 80%
  • Operating Temperature
    15 to 35 Degree C
