IPHNL-1200

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Idealphotonics Inc.

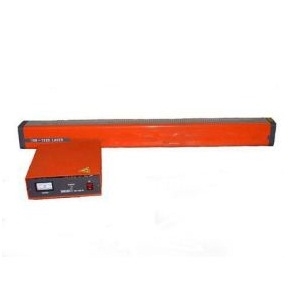

The IPHNL-1200 from Idealphotonics Inc is a Laser with Wavelength 632.8 nm, Power 25 mW, Output Power (CW) 25 mW. More details for IPHNL-1200 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    IPHNL-1200
  • Manufacturer
    Idealphotonics Inc
  • Description
    IPHNL-1200 He-Ne Lasers

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate)
  • Application Industry
    Entertainment, Scientific / Research
  • Application
    holography, Microscopy, Spectroscopy, Atomic & Molecular Physics, Fluorescence, DNA Sequencing, Metrology
  • Operation Mode
    CW Laser
  • Wavelength
    632.8 nm
  • Power
    25 mW
  • Output Power (CW)
    25 mW
  • Technology
    Gas Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Red
  • Transverse Mode
    TEM00
  • Beam Divergence :
    1 mrad
  • Gain Medium Type
    Gas Laser
  • Laser Cavity Material
    He-Cd
  • Laser Gain Medium
    Neutral Atom Gas Laser
  • Current
    0 to 15 mA
  • Power Supply
    220 VAC 50Hz
  • RoHS
    Yes

Physical Properties

  • Beam Diameter
    1.3 mm
