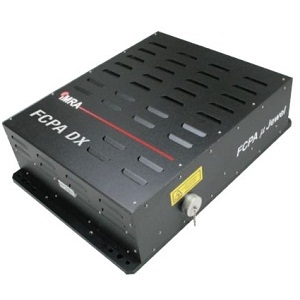

DX Series

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to IMRA America, Inc.

The DX Series from IMRA America, Inc is a Laser with Wavelength Up to 1045 nm, Power 2 to 10 W, Output Power (Pulsed) 2 to 10 W, Pulse Energy 10 to 40 µJ, Pulse Width 450 fs. More details for DX Series can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    DX Series
  • Manufacturer
    IMRA America, Inc

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Femtosecond Lasers
  • Application Industry
    Scientific / Research, Medical, Automotive / Industrial & Manufacturing
  • Operation Mode
    Pulsed Laser
  • Wavelength
    Up to 1045 nm
  • Wavelength Accuracy
    ± 5 nm
  • Power
    2 to 10 W
  • Output Power (Pulsed)
    2 to 10 W
  • Pulse Energy :
    10 to 40 µJ
  • Pulse Energy
    10 to 40 µJ
  • Pulse Width
    450 fs
  • Repetition Rate
    100 KHz
  • Technology
    Solid State Laser
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Infrared
  • Polarization
    Horizontal
  • Gain Medium Type
    Solid State Laser
  • Laser Gain Medium
    Ytterbium Laser
  • Warm up time
    60 minutes
  • Power Consumption
    600 W
  • Power Stability
    1% rms
  • Voltage
    100 to 240 VAC
  • Note
    Output Aperture Height: 55.4 mm, Head Heat Dissipation: 80 W

Physical Properties

  • Laser Head Dimension
    550 x 400 x 149 mm³
  • Laser Head Weight
    25 kg
  • Power Supply Dimension
    433 x 483 x 222 mm³
  • Power Supply Weight
    30 kg
  • Fiber length
    3 m

Environmental Conditions

  • Cooling Method
    Air-Cooled
  • Operating Temperature
    20 to 30 Degree C
  • Storage Temperature
    0 to 50 Degree C
