CYFL-GIGA

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Keopsys by LUMIBIRD.

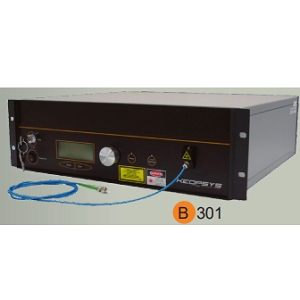

The CYFL-GIGA from Keopsys by LUMIBIRD is a Laser with Wavelength 1083 nm, Power 2 to 20 W, Operating Temperature 25 Degree C. More details for CYFL-GIGA can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    CYFL-GIGA
  • Manufacturer
    Keopsys by LUMIBIRD
  • Description
    Continuous Wave Ytterbium Fiber Laser

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Medical, Scientific / Research
  • Application
    Medical Imaging, Atomic & Molecular Physics, Absorption, Spectroscopy, Spectrum Analysis
  • Operation Mode
    CW Laser
  • Wavelength
    1083 nm
  • Spectral Width :
    2 GHz
  • Bandwidth
    DC to 1 kHz (frequency modulation)
  • Power
    2 to 20 W
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Infrared
  • Polarization
    Linear
  • Polarization Orientation
    Random
  • Beam Quality Factor (M2) :
    <1.1
  • Gain Medium Type
    Solid State Laser
  • Laser Gain Medium
    Ytterbium Laser
  • Power Stability
    <2 % rms
  • RoHS
    Yes

Physical Properties

  • Package
    Benchtop

Environmental Conditions

  • Operating Temperature
    25 Degree C
