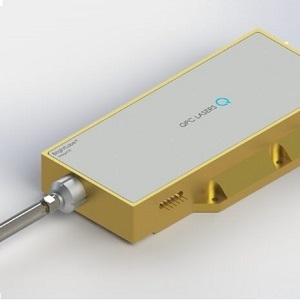

8807-0024

Laser by QPC Lasers
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to QPC Lasers.

The 8807-0024 from QPC Lasers is a Laser with Wavelength 790 to 796 nm, Power 80 W, Output Power (CW) 80 W, Operating Temperature 20 to 30 Degree C, Storage Temperature -40 to 70 Degree C. More details for 8807-0024 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    8807-0024
  • Manufacturer
    QPC Lasers
  • Description
    793 nm, 80 W, 200 µm Fiber-pigtailed Diode Laser Module

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Scientific Research
  • Application
    Pumping
  • Operation Mode
    CW Laser
  • Wavelength
    790 to 796 nm
  • Spectral Width :
    4 nm
  • Power
    80 W
  • Output Power (CW)
    80 W
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Infrared
  • Slope Efficiency :
    11 W/A
  • Current
    7.5 to 9 A
  • Laser Class
    Class 4
  • Numerical Aperture
    0.22
  • Voltage
    24.3 to 26 V
  • RoHS
    Yes
  • Note
    Wavelength Temperature Coefficient: 0.3 nm/Degree C, Power Conversion Efficiency: 45%

Physical Properties

  • Fiber diameter
    200 µm
  • Fiber length
    1.5 m

Environmental Conditions

  • Relative Humidity
    15 to 75%
  • Operating Temperature
    20 to 30 Degree C
  • Storage Temperature
    -40 to 70 Degree C
