RB1050XSX

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Laserglow Technologies.

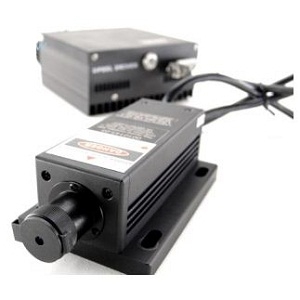

The RB1050XSX from Laserglow Technologies is a Laser with Wavelength 1112 nm, Power 50 mW, Operating Temperature 10 to 35 Degree C, Storage Temperature -10 to 50 Degree C. More details for RB1050XSX can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    RB1050XSX
  • Manufacturer
    Laserglow Technologies
  • Description
    1112 nm IR DPSS Laser System

General Parameters

  • Type
    Laser system
  • Configuration
    Laser Head with Control Unit (Separate)
  • Application Industry
    Scientific / Research, Communications
  • Application
    Test & Measurement, Optical Fiber Communication, Spectrum Analysis
  • Operation Mode
    CW Laser
  • Wavelength
    1112 nm
  • Wavelength Accuracy
    +/-3 nm
  • Power
    50 mW
  • Technology
    DPSS Laser
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Mode
    Multi-Mode
  • Laser Color
    Infrared
  • Transverse Mode
    TEM00
  • Beam Divergence :
    1.5 mrad
  • Gain Medium Type
    Solid State Laser
  • Laser Class
    Class IIIb
  • Warm up time
    10 Min.
  • Modulation Frequency
    500 Hz
  • Power Consumption
    22 W
  • Power Stability
    10% RMS/4h
  • Pointing Stability :
    0.05 mrad
  • Power Supply
    85 to 264 VAC
  • Voltage
    0 to 5 VDC

Physical Properties

  • Laser Head Dimension
    140.8 x 73 x 46.2 mm
  • Laser Head Weight
    0.6 kg
  • Power Supply Dimension
    133 x 130 x 65 mm
  • Power Supply Weight
    1.2 kg
  • Beam Area
    1.5 mm

Environmental Conditions

  • Operating Temperature
    10 to 35 Degree C
  • Storage Temperature
    -10 to 50 Degree C
