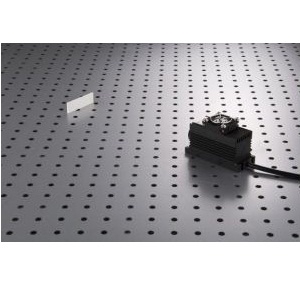

LSR1064ML

Laser by Lasever
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Lasever.

The LSR1064ML from Lasever is a Laser with Wavelength 1064 nm, Power 100 to 1500 mW, Output Power (CW) 100 to 1500 mW, Operating Temperature 20 to 30 Degree C, Storage Temperature 10 to 50 Degree C. More details for LSR1064ML can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    LSR1064ML
  • Manufacturer
    Lasever

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate), OEM Laser Module
  • Application Industry
    Automotive / Industrial & Manufacturing, Scientific / Research, Defense / Military & Aerospace
  • Application
    3D Printing, Inspection & Measurement, Fluorescence, Microscopy, DNA Sequencing, LiDAR
  • Operation Mode
    CW Laser
  • Wavelength
    1064 nm
  • Power
    100 to 1500 mW
  • Output Power (CW)
    100 to 1500 mW
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Infrared
  • Transverse Mode
    TEM00
  • Beam Divergence :
    1.2 mrad
  • Warm up time
    5 Minutes
  • Modulation Frequency
    0 to 30 khz
  • Pointing Stability :
    0.05 mrad

Physical Properties

  • Power Supply Dimension
    100 x 58 x 32 mm
  • Beam Diameter
    2 mm

Environmental Conditions

  • Operating Temperature
    20 to 30 Degree C
  • Storage Temperature
    10 to 50 Degree C
