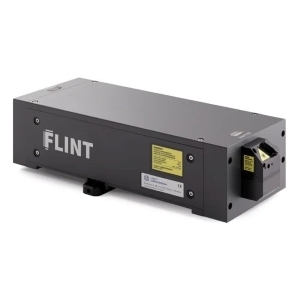

The FLINT FL2 from Light Conversion is a Femtosecond Laser that operates at wavelengths of 1030 nm. It delivers a maximum output power of 5 W & 20 W and has a wavelength accuracy of ± 10 nm. This laser has a pulse energy of up to 0.25 µJ & 0.5 µJ and repetition rate of 10 MHz, 40 MHz & 80 MHz. It has a pulse duration below 120 fs & 170 fs and long-term power stability of less than 0.5%. This linearly & horizontally polarized laser has a maximum beam quality factor (M2) of less than 1.2 and beam pointing stability of 10 µrad/°C. It has a timing jitter stability of over 14 h and relative intensity noise (RIN) of -160 dBc/Hz.
The FLINT FL2 has an integrated attenuator and second harmonic generator with a conversion efficiency above 30%. It produces 2nd, 3rd, or 4th harmonic generators and features carrier-envelope phase (CEP) stabilization or repetition rate locking. This laser requires an AC supply voltage of 100 V - 240 V, consumes 5 A - 12 A of current, and dissipates 150 W & 1000 W of power. It is available in a package that measures 543 (L) mm x 322 (W) mm x 146 (H) mm (laser head) and 642 (L) mm x 553 (W) mm x 673 (H) mm (power supply & chiller). This laser is ideal for industrial and scientific applications.
