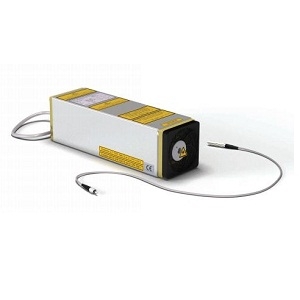

MNL 308

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to LTB Lasertechnik Berlin.

The MNL 308 from LTB Lasertechnik Berlin is a Laser with Wavelength 337.1 nm, Power 25 kW, Output Power (Pulsed) 25 kW, Pulse Energy 75 µJ, Pulse Width 3 ns. More details for MNL 308 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    MNL 308
  • Manufacturer
    LTB Lasertechnik Berlin
  • Description
    The MNL 300 is the ideal light source for applications like fluorescence, phosphorescence and mass spectrometry in research, medical diagnostics and industry

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated), OEM Laser Module
  • Ultrafast Laser
    Nanosecond Lasers
  • Application Industry
    Scientific / Research
  • Application
    Imaging, Spectroscopy, Test & Measurement
  • Operation Mode
    Pulsed Laser
  • Wavelength
    337.1 nm
  • Spectral Width :
    0.1 nm
  • Power
    25 kW
  • Output Power (Pulsed)
    25 kW
  • Pulse Energy :
    75 µJ
  • Pulse Energy
    75 µJ
  • Pulse Width
    3 ns
  • Repetition Rate
    Up to 80 Hz
  • Technology
    Gas Laser, Solid State Laser
  • Tunable
    Yes
  • Fiber Coupled
    Yes
  • Laser Color
    Ultraviolet
  • Beam Divergence :
    3.5 x 3 mrad
  • Gain Medium Type
    Gas Laser
  • Laser Cavity Material
    Nitrogen
  • Laser Gain Medium
    Molecular Laser
  • Current
    1.45 A
  • Laser Class
    Class 3B/IIIb
  • Warm up time
    20 s
  • Peak Power
    72 W
  • Voltage
    24 VDC
  • Note
    Focus Stability: 15 µm , Jitter: ± 5 ns, Peak Current: 3 A

Physical Properties

  • Laser Head Dimension
    321 x 87 x 87 mm
  • Laser Head Weight
    2.8 kg
  • Power Supply Dimension
    110 x 40 x 50 mm
  • Power Supply Weight
    0.3 kg
  • Beam Area
    Beam Dimension: 3 x 4 mm

Environmental Conditions

  • Cooling Method
    Air-Cooled
  • Relative Humidity
    85% (Non-Condensing)
  • Operating Temperature
    15 to 38 Degree C
  • Storage Temperature
    -10 to 60 Degree C
