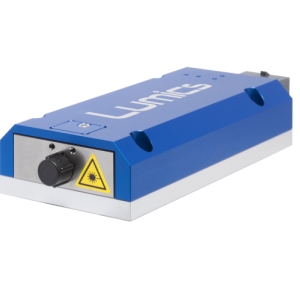

LU1064Dyyy-U

Laser by Lumics
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Lumics.

The LU1064Dyyy-U from Lumics is a Laser with Wavelength 1064 nm, Power 30 to 70 W, Output Power (CW) 30 to 70 W, Operating Temperature 10 to 45 Degree C, Storage Temperature 0 to 55 Degree C. More details for LU1064Dyyy-U can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    LU1064Dyyy-U
  • Manufacturer
    Lumics
  • Description
    Diode Laser with up to 37 W at 808nm

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head, OEM Laser Module
  • Application Industry
    Medical, Scientific / Research
  • Application
    Photobiomodulation, Dental, Dermatology, Diagnosis, Medical Imaging, Pumping Source
  • Operation Mode
    CW Laser
  • Wavelength
    1064 nm
  • Wavelength Accuracy
    ± 10 nm
  • Spectral Width :
    4 nm
  • Power
    30 to 70 W
  • Output Power (CW)
    30 to 70 W
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Infrared
  • Connectors
    SMA
  • Current
    12 to 24 A
  • Voltage
    6.5 V
  • RoHS
    Yes

Physical Properties

  • Weight
    160 g
  • Fiber diameter
    105, 200, 400 µm

Environmental Conditions

  • Relative Humidity
    90% (Non-Condensing)
  • Operating Temperature
    10 to 45 Degree C
  • Storage Temperature
    0 to 55 Degree C
