C61AL

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to National Laser Company.

The C61AL from National Laser Company is a Laser with Wavelength 458, 514 nm, Power 25 to 65 mW, Output Power (CW) 25 to 65 mW, Operating Temperature 4 to 40 Degree C, Storage Temperature -30 to 60 Degree C. More details for C61AL can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    C61AL
  • Manufacturer
    National Laser Company
  • Description

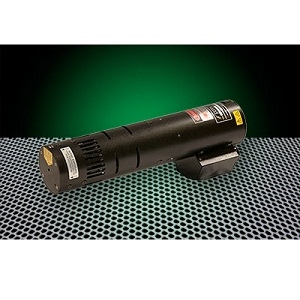

    C61 Air-Cooled Argon Laser System

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate), OEM Laser Module
  • Application Industry
    Automotive / Industrial & Manufacturing, Scientific / Research, Medical
  • Application
    3D Printing, Machine Vision, Flow Cytometry, DNA Sequencing, Microscopy, Spectroscopy, Bio-Medical, Inspection & Measurement, Oncology, Laser Surgery, Medical Imaging
  • Operation Mode
    CW Laser
  • Wavelength
    458, 514 nm
  • Power
    25 to 65 mW
  • Output Power (CW)
    25 to 65 mW
  • Technology
    Gas Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Blue, Green
  • Transverse Mode
    TEM00
  • Beam Divergence :
    1 mrad
  • Gain Medium Type
    Gas Laser
  • Laser Cavity Material
    Argon Ion
  • Laser Gain Medium
    Ion Laser
  • Current
    16 A
  • Warm up time
    10 Minutes
  • Modulation Frequency
    47 to 63 Hz
  • Power Stability
    ±1%
  • Pointing Stability :
    30 µrad
  • Power Supply
    100 to 240 VAC

Physical Properties

  • Laser Head Dimension
    14.13 x 4 x 4.81 Inch
  • Laser Head Weight
    2.8 kg
  • Power Supply Dimension
    11 x 6.38 x 3.85 Inch
  • Power Supply Weight
    3.18 kg
  • Beam Diameter
    0.67 mm

Environmental Conditions

  • Relative Humidity
    90%, 100%
  • Operating Temperature
    4 to 40 Degree C
  • Storage Temperature
    -30 to 60 Degree C
