Blue 465 3.6W

Laser by NECSEL
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to NECSEL.

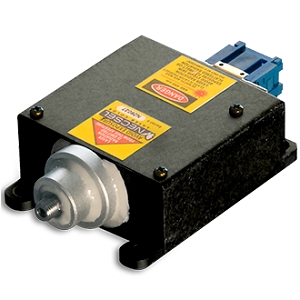

The Blue 465 3.6W from NECSEL is a Laser with Wavelength 460, 470 nm, Power 3.6 W, Output Power (CW) 3.6 W, Operating Temperature 30 Degree C. More details for Blue 465 3.6W can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Blue 465 3.6W
  • Manufacturer
    NECSEL

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Automotive / Industrial & Manufacturing, Environmental, Medical, Entertainment
  • Application
    Welding, Laser Printers, Remote Sensing, Monitoring, Laser Surgery, Laser Light Shows, Dermatology, Oncology, Ophthalmology, Bloodstain Analysis
  • Operation Mode
    CW Laser
  • Wavelength
    460, 470 nm
  • Power
    3.6 W
  • Output Power (CW)
    3.6 W
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Blue
  • Slope Efficiency :
    1.1 N/A
  • Connectors
    SMA-905
  • Current
    1.2 to 1.4 A
  • Voltage
    11.5 to 17 V
  • Note
    Threshold Current: 300 - 550 mA

Physical Properties

  • Fiber diameter
    400 µm

Environmental Conditions

  • Operating Temperature
    30 Degree C
