1550nm Pulsed Erbium Fiber Laser

Request Quote

Note: Your Quotation Request will be directed to Neptec Optical Solutions.

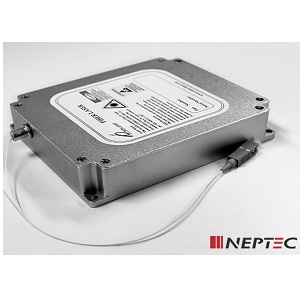

The 1550nm Pulsed Erbium Fiber Laser from Neptec Optical Solutions is a Laser with Wavelength 1548 to 1552 nm, Power 20 to 35 W, Pulse Energy 1.25 to 2.20 µJ, Pulse Width 5 to 50 ns, Repetition Rate 12 to 20 kHz. More details for 1550nm Pulsed Erbium Fiber Laser can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    1550nm Pulsed Erbium Fiber Laser
  • Manufacturer
    Neptec Optical Solutions
  • Description
    1550nm Pulsed Erbium Fiber Laser

General Parameters

  • Type
    Laser system
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Nanosecond Lasers
  • Application Industry
    Defense / Military & Aerospace, Environmental, Automotive / Industrial & Manufacturing, Communications
  • Application
    LiDAR, Environmental Mapping, Laser Rangefinders, Remote Sensing, Contaminant Detection, Material processing, Optical Fiber Communication
  • Operation Mode
    Pulsed Laser
  • Wavelength
    1548 to 1552 nm
  • Power
    20 to 35 W
  • Pulse Energy :
    1.25 to 2.20 µJ
  • Pulse Energy
    1.25 to 2.20 µJ
  • Pulse Width
    5 to 50 ns
  • Repetition Rate
    12 to 20 kHz
  • Technology
    Solid State Laser
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Mode
    Single Mode
  • Laser Color
    Infrared
  • Polarization Orientation
    Random
  • Gain Medium Type
    Solid State Laser
  • Laser Gain Medium
    Ytterbium Laser
  • Power Consumption
    5 to 8.5 W
  • Interface
    RS-232
  • Voltage
    4.3 to 5.3 V

Physical Properties

  • Package
    Benchtop
  • Dimension
    150 x 125 x 30 mm
  • Weight
    720 g

Environmental Conditions

  • Relative Humidity
    10 to 90%
  • Operating Temperature
    0 to 50 Degree C
  • Storage Temperature
    -10 to 60 Degree C
Click to view more product details on manufacturer's website
