GS-4000-QMI

Laser by Northrop Grumman
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Northrop Grumman.

The GS-4000-QMI from Northrop Grumman is a Laser with Wavelength 1064 nm, Power 40 W, Output Power (Pulsed) 40 W, Pulse Energy 4 J, Pulse Width 10 ns. More details for GS-4000-QMI can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    GS-4000-QMI
  • Manufacturer
    Northrop Grumman
  • Description

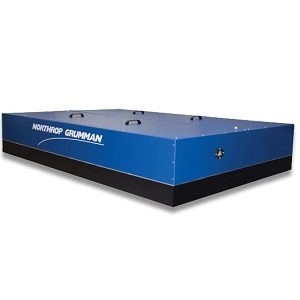

    The Gigashot HE laser system is a high energy, short pulse diode-pumped solid-state (DPSS) Nd:YAG laser system

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Nanosecond Lasers
  • Application Industry
    Automotive / Industrial & Manufacturing, Medical
  • Application
    Welding, Cutting, Drilling, Marking, Engraving, Cleaning, Trimming, Laser Surgery, Dermatology, Oncology, Ophthalmology
  • Operation Mode
    Pulsed Laser
  • Wavelength
    1064 nm
  • Power
    40 W
  • Output Power (Pulsed)
    40 W
  • Pulse Energy :
    4 J
  • Pulse Energy
    4 J
  • Pulse Width
    10 ns
  • Repetition Rate
    10 Hz
  • Pulse to Pulse Stability
    0.5 % rms
  • Technology
    DPSS Laser, Solid State Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Infrared
  • Polarization
    Horizontal
  • Gain Medium Type
    Solid State Laser
  • Laser Cavity Material
    Nd:YAG
  • Laser Gain Medium
    Neodymium-Doped Lasers
  • Modulation Frequency
    50 to 60 Hz
  • Power Supply
    85 to 264 VAC
  • Note
    Jitter: 1 ns

Physical Properties

  • Laser Head Dimension
    77.63 x 48 x 13.27 in
  • Beam Diameter
    15.5 mm

Environmental Conditions

  • Cooling Method
    Water-Cooled
  • Operating Temperature
    18 to 30 Degree C
