taccor X10

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Novanta Photonics.

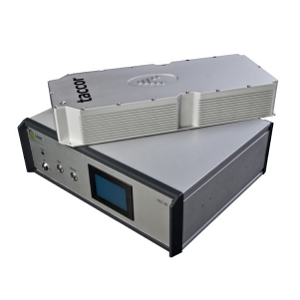

The taccor X10 from Novanta Photonics is a Laser with Wavelength 800 nm, Power 1000 to 1800 mW, Pulse Energy >100 pJ, Pulse Width <50 fs, Repetition Rate 10 GHz. More details for taccor X10 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    taccor X10
  • Manufacturer
    Novanta Photonics

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate)
  • Ultrafast Laser
    Femtosecond Lasers
  • Application Industry
    Scientific / Research, Communications, Defense / Military & Aerospace, Automotive / Industrial & Manufacturing
  • Application
    Microscopy, Sensing, Imaging, Optical Fiber Communication, Metrology, Spectroscopy, Optical Coherence Tomography, Spectrum Analysis, Fluorescence, Communication & Navigation, Transmission, Test & Measurement, Machine Vision
  • Operation Mode
    Pulsed Laser
  • Wavelength
    800 nm
  • Wavelength Accuracy
    ±20 nm
  • Spectral Width :
    >15 nm
  • Power
    1000 to 1800 mW
  • Pulse Energy :
    >100 pJ
  • Pulse Energy
    >100 pJ
  • Pulse Width
    <50 fs
  • Repetition Rate
    10 GHz
  • Technology
    Solid State Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Infrared
  • Polarization
    Horizontal
  • Polarization ratio :
    >100:1
  • Beam Divergence :
    <10 mrad
  • Beam Quality Factor (M2) :
    <1.5
  • Gain Medium Type
    Solid State Laser
  • Laser Gain Medium
    Ti:Sapphire Laser
  • Warm up time
    10 min
  • Power Stability
    <1%
  • RMS Noise Power
    <0.05%

Physical Properties

  • Package
    Benchtop
  • Laser Head Weight
    15 kg
  • Weight
    15 kg (Laser Head)

Environmental Conditions

  • Operating Temperature
    16 to 26 Degree C
