EDFL-Nano-1550-3-75-3W-COL

Note: Your Quotation Request will be directed to Nuphoton Technologies, Inc..

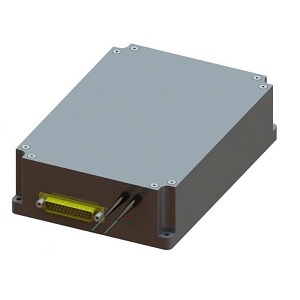

The EDFL-Nano-1550-3-75-3W-COL from Nuphoton Technologies is an Erbium-Doped Nanosecond Fiber Laser that operates at a wavelength of 1550 nm. It provides an output power of 3 W. The laser produces to 75 µJ of energy per pulse with a pulse repetition rate from 40-250 kHz and has a pulse width of 3 ns. It requires a DC supply of 24 V and supports RS-232 and TTL control interfaces. This microprocessor-controlled laser is available in a module that measures 180 x 130 x 49 mm with electrical interface connectors.

Product Specifications

View similar products

Product Details

  • Part Number
    EDFL-Nano-1550-3-75-3W-COL
  • Manufacturer
    Nuphoton Technologies, Inc.
  • Description
    1550 nm Erbium-Doped Nanosecond Fiber Laser

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Nanosecond Lasers
  • Application Industry
    Scientific / Research, Automotive / Industrial & Manufacturing, Communications
  • Operation Mode
    Pulsed Laser
  • Wavelength
    1550 nm
  • Power
    3 W
  • Pulse Energy :
    up to 75 uJ
  • Pulse Width
    3 ns
  • Repetition Rate
    20 to 250 kHz
  • Technology
    Solid State Laser
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Near-Infrared
  • Gain Medium Type
    Solid State Laser
  • Laser Gain Medium
    Erbium-Doped Laser
  • Interface
    RS-232
  • Power Supply
    +24 VDC
  • Note
    Micro Processor Controlled

Physical Properties

  • Dimension
    180 x 130 x 49 mm

Environmental Conditions

  • Operating Temperature
    -5 to 60 Degree C
