EDFL-Nano-1550-5-30-1.2-COL

Download Datasheet Request Quote

Note: Your Quotation Request will be directed to Nuphoton Technologies, Inc..

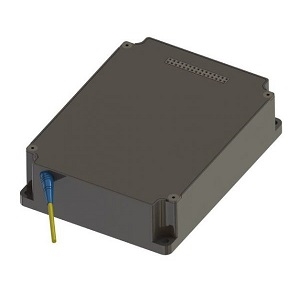

The EDFL-Nano-1550-5-30-1.2-COL from Nuphoton Technologies, Inc. is a Laser with Power 1.2 W, Wavelength 1550 nm, Pulse Width 5 ns, Pulse Energy 3 uJ, Repetition Rate 40 kHz to 600 kHz. More details for EDFL-Nano-1550-5-30-1.2-COL can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    EDFL-Nano-1550-5-30-1.2-COL
  • Manufacturer
    Nuphoton Technologies, Inc.

General Parameters

  • Configuration
    Laser Head with Control Unit (Integrated)
  • Type
    Laser Module
  • Technology
    Solid State Laser
  • Operation Mode
    Pulsed Laser
  • Power
    1.2 W
  • Wavelength
    1550 nm
  • Ultrafast Laser
    Nanosecond Lasers
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Near-Infrared
  • Pulse Width
    5 ns
  • Pulse Energy :
    3 uJ
  • Gain Medium Type
    Solid State Laser
  • Laser Gain Medium
    Erbium-Doped Laser
  • Application Industry
    Scientific / Research, Automotive / Industrial & Manufacturing, Communications
  • Repetition Rate
    40 kHz to 600 kHz
  • Beam Divergence :
    0.4 mrad
  • Interface
    RS-232 and TTL
  • Power Supply
    +12 VDC
  • Note
    Micro Processor Controlled

Physical Properties

  • Dimension
    100 x 75 x 25 mm
  • Fiber diameter
    9 mm

Environmental Conditions

  • Operating Temperature
    -5 to 60 Degree C
