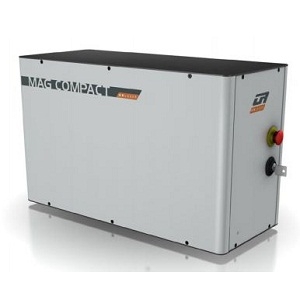

MAG COMPACT-10

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to O.R. Lasertechnology.

The MAG COMPACT-10 from O.R. Lasertechnology is a Laser with Wavelength 1067 nm, Power 10 W, Pulse Energy 500 µJ, Pulse Width 100 ns, Operating Temperature 5 to 40 Degree C. More details for MAG COMPACT-10 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    MAG COMPACT-10
  • Manufacturer
    O.R. Lasertechnology
  • Description
    The cost-effective choice

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Nanosecond Lasers
  • Application Industry
    Environmental, Scientific / Research
  • Application
    Cladding, Spectroscopy, Transmission, Microscopy
  • Operation Mode
    Pulsed Laser
  • Wavelength
    1067 nm
  • Power
    10 W
  • Pulse Energy :
    500 µJ
  • Pulse Energy
    500 µJ
  • Pulse Width
    100 ns
  • Technology
    Solid State Laser
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Infrared
  • Gain Medium Type
    Solid State Laser
  • Laser Cavity Material
    Yb:YAG
  • Laser Gain Medium
    Ytterbium Laser
  • Modulation Frequency
    20 to 100 kHz
  • Power Consumption
    700 W
  • Peak Power
    5 kW
  • Power Supply
    230 V
  • Voltage
    230 V

Physical Properties

  • Package
    Benchtop
  • Laser Head Dimension
    428 x 106 x 140 mm
  • Laser Head Weight
    7 Kg
  • Power Supply Dimension
    349 x 130 x 325 mm
  • Power Supply Weight
    14.7 Kg
  • Dimension
    455 x 276 x 190 mm
  • Weight
    16 Kg
  • Fiber diameter
    500 µm

Environmental Conditions

  • Cooling Method
    Air Cooling
  • Operating Temperature
    5 to 40 Degree C
