OE4126

Laser by OEwaves
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to OEwaves.

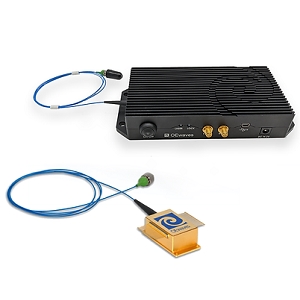

The OE4126 from OEwaves is a Laser with Wavelength 1064 nm, Power 5 to 10 mW, Operating Temperature 20 to 40 Degree C. More details for OE4126 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    OE4126
  • Manufacturer
    OEwaves

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Scientific Research, Defense / Military & Aerospace, Environmental, Communications
  • Application
    Interferometric Optical Sensing, LIDAR, B-OTDR Temperature and Strain, Gas Sensing, Optical Metrology and Spectroscopy, Acoustic Sensing, Oil and Gas Exploration, Coherent Communication, Test and Measurement
  • Operation Mode
    CW Laser
  • Wavelength
    1064 nm
  • Spectral Width :
    <10 Hz
  • Bandwidth
    DC to 100 kHz
  • Power
    5 to 10 mW
  • Tunable
    Yes
  • Fiber Coupled
    Yes (Optional)
  • Mode
    Polarization Maintaining
  • Laser Color
    Near-Infrared
  • Polarization ratio :
    20 dB
  • Connectors
    FC/APC
  • Laser Class
    Class 3b
  • Modulation Frequency
    ±200 to 500 MHz
  • Interface
    USB, RS232

Physical Properties

  • Dimension
    2.3 x 6 x 1 Inch

Environmental Conditions

  • Operating Temperature
    20 to 40 Degree C
