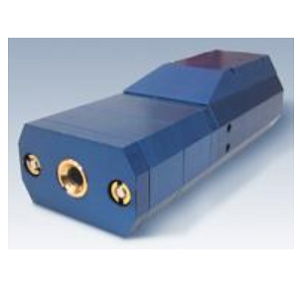

Greenphoton_ DC180 Series

Laser by Omicron-Laserage
416 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Omicron-Laserage.

The Greenphoton_ DC180 Series from Omicron-Laserage is a Laser with Wavelength 515 nm, Power 25 to 80 mW. More details for Greenphoton_ DC180 Series can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Greenphoton_ DC180 Series
  • Manufacturer
    Omicron-Laserage
  • Description
    515 nm Modulated diode lasers

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Operation Mode
    CW Laser
  • Wavelength
    515 nm
  • Power
    25 to 80 mW
  • Tunable
    No
  • Fiber Coupled
    No
  • Mode
    Single Mode, Multi-Mode
  • Laser Color
    Green
  • Polarization
    Vertical
  • Polarization ratio :
    >100:1
  • Beam Quality Factor (M2) :
    <1.2 (SM), <6 (MM)
  • Rise/Fall Time :
    <1 ns
  • Beam Shape
    Elliptical
  • Digital Modulation
    >180 MHz
  • Analog Modulation
    1 MHz
  • Power Stability
    <0.5% / h
  • RMS Noise Power
    <0.5%
  • Interface
    RS-232
  • Power Supply
    85 to 245VAC, 50 to 60Hz
  • Note
    Extinction ratio: >250 : 1

Physical Properties

  • Package
    Benchtop
  • Beam Diameter
    1.25 mm
