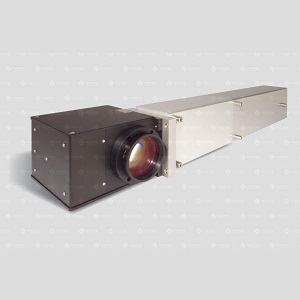

AQUILA Mark 200

Laser by Photon Energy
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Photon Energy.

The AQUILA Mark 200 from Photon Energy is a Laser with Wavelength 1064 nm, Power 200 W, Operating Temperature 10 to 40 Degree C. More details for AQUILA Mark 200 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    AQUILA Mark 200
  • Manufacturer
    Photon Energy
  • Description
    AQUILA Mark

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate), OEM Laser Module
  • Application Industry
    Automotive / Industrial & Manufacturing, Environmental
  • Application
    Engraving, Annealing, Cutting, Cleaning, Carbonization
  • Operation Mode
    Pulsed Laser
  • Wavelength
    1064 nm
  • Power
    200 W
  • Technology
    Solid State Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Mode
    Multi-Mode
  • Laser Color
    Infrared
  • Gain Medium Type
    Solid State Laser
  • Laser Cavity Material
    Nd:YAG
  • Laser Gain Medium
    Neodymium-Doped Laser
  • Modulation Frequency
    1 to 100 kHz
  • Power Consumption
    3.6 kW
  • Peak Power
    350 kW
  • Power Supply
    230 VAC, 50 Hz (optional 60 Hz)

Physical Properties

  • Laser Head Dimension
    957 x 140 x 190 mm³
  • Laser Head Weight
    24.3 kg
  • Power Supply Dimension
    473 x 482 x 133 mm³
  • Power Supply Weight
    19 kg
  • Fiber length
    5 m

Environmental Conditions

  • Operating Temperature
    10 to 40 Degree C
