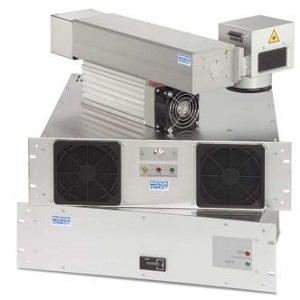

LEO Mark 8

Laser by Photon Energy
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Photon Energy.

The LEO Mark 8 from Photon Energy is a Laser with Wavelength 1064 nm, Power 8 W, Operating Temperature 10 to 35 Degree C. More details for LEO Mark 8 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    LEO Mark 8
  • Manufacturer
    Photon Energy
  • Description
    LEO Mark

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate), OEM Laser Module
  • Application Industry
    Automotive / Industrial & Manufacturing, Environmental, Scientific / Research
  • Application
    Engraving, Carbonization, Packaging, Sensing, Imaging, Cladding, Structuring
  • Operation Mode
    Pulsed Laser
  • Wavelength
    1064 nm
  • Power
    8 W
  • Technology
    Solid State Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Infrared
  • Transverse Mode
    TEM00
  • Gain Medium Type
    Solid State Laser
  • Laser Cavity Material
    Nd:YAG
  • Laser Gain Medium
    Neodymium-Doped Laser
  • Modulation Frequency
    1 to 100 kHz
  • Power Consumption
    0.7 kW
  • Peak Power
    56 kW
  • Power Supply
    230 VAC, 50 Hz / 115 VAC, 60 Hz

Physical Properties

  • Laser Head Dimension
    465 x 270 x 196 mm³
  • Laser Head Weight
    12 kg
  • Power Supply Dimension
    293 x 482 x 129 mm³
  • Power Supply Weight
    16 kg
  • Fiber length
    3 m

Environmental Conditions

  • Cooling Method
    Air Cooled
  • Operating Temperature
    10 to 35 Degree C
