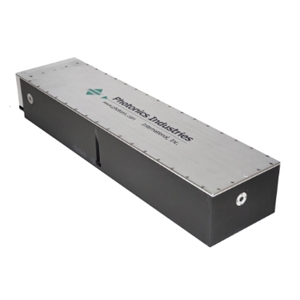

DM1-527-20

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Photonics Industries.

The DM1-527-20 from Photonics Industries is a Laser with Wavelength 527 nm, Power 30 W, Pulse Energy 20 mJ, Pulse Width 180 ns, Repetition Rate 1 to 10 kHz. More details for DM1-527-20 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    DM1-527-20
  • Manufacturer
    Photonics Industries
  • Description
    527 nm Multimode, Q-Switched Lasers with 30 W Power

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Nanosecond Lasers
  • Application Industry
    Scientific Research, Environmental, Automotive / Industrial & Manufacturing
  • Application
    Particle Image Velocimetry (PIV), Pumping Ti: Sapphire, Ultrafast Amplifier Systems, High Power cutting, drilling, welding, marking, patterning, Laser Thermal Processing (LTP), Semiconductor Lithography, Surface Cleaning and Ablation, Water-Jet Assisted Laser cutting, Diamond Cutting, Precision Layer Removal for Additive Manufacturing
  • Operation Mode
    Pulsed Laser
  • Wavelength
    527 nm
  • Power
    30 W
  • Pulse Energy :
    20 mJ
  • Pulse Energy
    20 mJ
  • Pulse Width
    180 ns
  • Repetition Rate
    1 to 10 kHz
  • Pulse to Pulse Stability
    <1% RMS
  • Technology
    DPSS Laser, Q-Switched Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Mode
    Multi Mode
  • Laser Color
    Green
  • Polarization
    Vertical
  • Polarization ratio :
    100:1
  • Beam Divergence :
    9 mrad
  • Beam Quality Factor (M2) :
    10 to 16
  • Gain Medium Type
    Solid State Laser
  • Laser Cavity Material
    Nd:YLF
  • Laser Gain Medium
    Neodymium-Doped, Ti:Sapphire
  • Beam Shape
    Round
  • Laser Class
    CLASS 4
  • Warm up time
    <5 minutes (standby), <10 minutes (cold start)
  • Power Consumption
    0.8 kW
  • Power Stability
    <0.5% RMS
  • Pointing Stability :
    <25 µrad
  • Interface
    RS232, Ethernet, Software GUI, External TTL Triggering
  • Power Supply
    100 to 240 VAC, 50 to 60 Hz
  • RoHS
    Yes
  • Certifications
    CE, RoHS

Physical Properties

  • Laser Head Dimension
    660.4 x 165.1 x 107.95 mm
  • Power Supply Dimension
    381 x 259.08 x 88.9 mm
  • Weight
    22.2 kg
  • Beam Diameter
    5 mm

Environmental Conditions

  • Cooling Method
    Water Cooled
  • Relative Humidity
    0 to 80%
  • Altitude
    Sea level to 12000 m
  • Operating Temperature
    15 to 30 Degree C
  • Storage Temperature
    -10 to 40 Degree C
