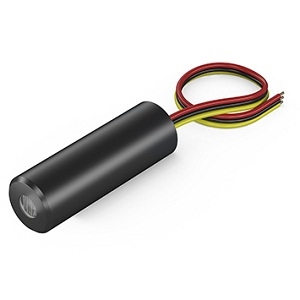

CB650-1.2-3(16x45)-F100

Laser by Picotronic
924 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Picotronic.

The CB650-1.2-3(16x45)-F100 from Picotronic is a Laser with Wavelength 650 nm, Power 1.2 mW, Output Power (CW) 1.2 mW, Operating Temperature -20 to 50 Degree C, Storage Temperature -40 to 80 Degree C. More details for CB650-1.2-3(16x45)-F100 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    CB650-1.2-3(16x45)-F100
  • Manufacturer
    Picotronic
  • Description
    Isolated Cross laser module, red, 90°, 650nm, 1.2mW, 3V DC, focus 100mm, 16x45mm, class 1

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Scientific / Research, Medical, Automotive / Industrial & Manufacturing
  • Operation Mode
    CW Laser
  • Wavelength
    650 nm
  • Power
    1.2 mW
  • Output Power (CW)
    1.2 mW
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Red
  • Beam Divergence :
    0.3 mrad
  • Beam Shape
    Cross
  • Current
    15 to 40 mA
  • Laser Class
    Class I
  • Modulation Frequency
    50 KHz
  • Output Aperture
    6.8 mm
  • Voltage
    2.7 to 3.3 VDC
  • Note
    Material: Aluminium, Cable length: 100 mm, Operating Distance: 0.1 m, Fan Angle: 90°, Thickness: 0.3 [email protected]

Physical Properties

  • Dimension
    Ø16 x 45 mm
  • Weight
    23 g

Environmental Conditions

  • Operating Temperature
    -20 to 50 Degree C
  • Storage Temperature
    -40 to 80 Degree C
