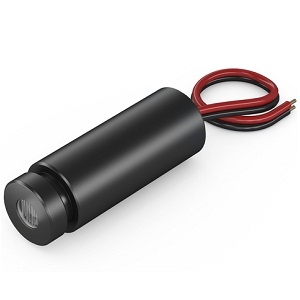

DB670-2.5-3-FA(12x35)

Laser by Picotronic
924 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Picotronic.

The DB670-2.5-3-FA(12x35) from Picotronic is a Laser with Wavelength 670 nm, Power 2.5 mW, Output Power (CW) 2.5 mW, Operating Temperature -20 to 50 Degree C, Storage Temperature -40 to 80 Degree C. More details for DB670-2.5-3-FA(12x35) can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    DB670-2.5-3-FA(12x35)
  • Manufacturer
    Picotronic
  • Description
    isolated Dot lasermodule, red, 670nm, 2.5mW, 3V DC, 14x45mm, class 2M,Round spot

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Scientific / Research, Automotive / Industrial & Manufacturing
  • Operation Mode
    CW Laser
  • Wavelength
    670 nm
  • Power
    2.5 mW
  • Output Power (CW)
    2.5 mW
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Red
  • Beam Divergence :
    0.3 mrad
  • Beam Shape
    Dot
  • Current
    25 to 70 mA
  • Laser Class
    Class 3R
  • Output Aperture
    5 mm
  • Power Stability
    +/- 5% @ -10-45°C
  • Voltage
    2.7 to 3.3 VDC
  • Note
    Material: Aluminium, Cable length: 2000 mm, Operating Distance: 50 m

Physical Properties

  • Dimension
    Ø12 x 35 mm
  • Weight
    35 g
  • Beam Area
    adjustable

Environmental Conditions

  • Operating Temperature
    -20 to 50 Degree C
  • Storage Temperature
    -40 to 80 Degree C
