DC650-1-3(20x20x80)-S-AP

Laser by Picotronic
924 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Picotronic.

The DC650-1-3(20x20x80)-S-AP from Picotronic is a Laser with Wavelength 650 nm, Power 1 mW, Output Power (CW) 1 mW, Operating Temperature -20 to 50 Degree C, Storage Temperature -40 to 80 Degree C. More details for DC650-1-3(20x20x80)-S-AP can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    DC650-1-3(20x20x80)-S-AP
  • Manufacturer
    Picotronic
  • Description

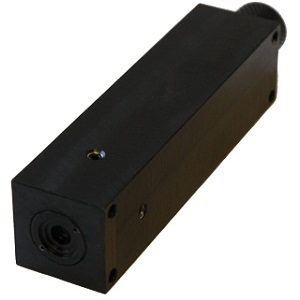

    Dot lasermodule, red, 650nm, 1mW, 3V DC, 20x20x80mm, class 2, axial parallel, with switch and battery supply

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Scientific / Research, Medical, Automotive / Industrial & Manufacturing
  • Operation Mode
    CW Laser
  • Wavelength
    650 nm
  • Power
    1 mW
  • Output Power (CW)
    1 mW
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Red
  • Beam Divergence :
    0.4 mrad
  • Beam Shape
    Dot
  • Current
    15 to 35 mA
  • Laser Class
    Class 2
  • Output Aperture
    5 mm
  • Voltage
    2.7 to 3.3 VDC
  • Note
    Axial Divergence: ±0.2°, Material: Aluminium, Operating Distance: 20 m

Physical Properties

  • Dimension
    20 x 20 x 80 mm
  • Weight
    98 g
  • Beam Area
    5 mm@20m
  • Beam Diameter
    4 mm

Environmental Conditions

  • Operating Temperature
    -20 to 50 Degree C
  • Storage Temperature
    -40 to 80 Degree C
