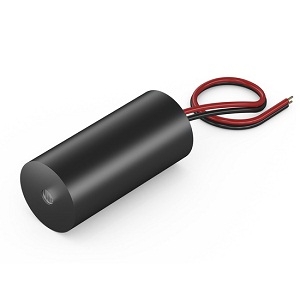

DDI650-7-5(14x34)

Laser by Picotronic
924 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Picotronic.

The DDI650-7-5(14x34) from Picotronic is a Laser with Wavelength 650 nm, Power 7 mW, Output Power (CW) 7 mW, Operating Temperature -20 to 50 Degree C, Storage Temperature -40 to 80 Degree C. More details for DDI650-7-5(14x34) can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    DDI650-7-5(14x34)
  • Manufacturer
    Picotronic
  • Description
    isolated Dot lasermodule, red, 650nm, 7mW, 5V DC, 14x34mm, class 3R

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Scientific / Research, Automotive / Industrial & Manufacturing, Entertainment
  • Application
    Imaging, Laser Projectors, Cutting, Welding
  • Operation Mode
    CW Laser
  • Wavelength
    650 nm
  • Power
    7 mW
  • Output Power (CW)
    7 mW
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Red
  • Beam Divergence :
    0.5 mrad
  • Beam Shape
    Dot
  • Current
    30 to 90 mA
  • Laser Class
    Class 3R
  • Output Aperture
    3 mm
  • Voltage
    4.5 to 5.5 VDC
  • Note
    Material: Aluminium, Cable length: 100 mm, Operating Distance: 1 m

Physical Properties

  • Dimension
    Ø14 x 34 mm
  • Weight
    11.3 g
  • Beam Diameter
    3 mm

Environmental Conditions

  • Operating Temperature
    -20 to 50 Degree C
  • Storage Temperature
    -40 to 80 Degree C
